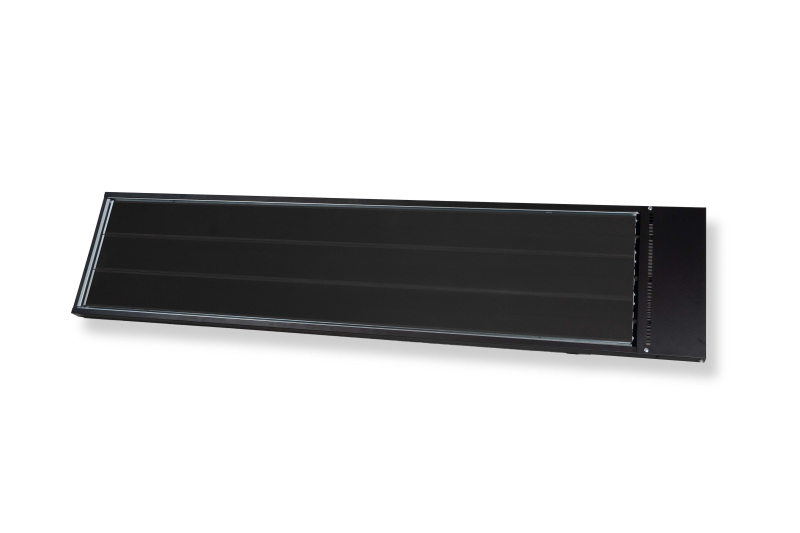

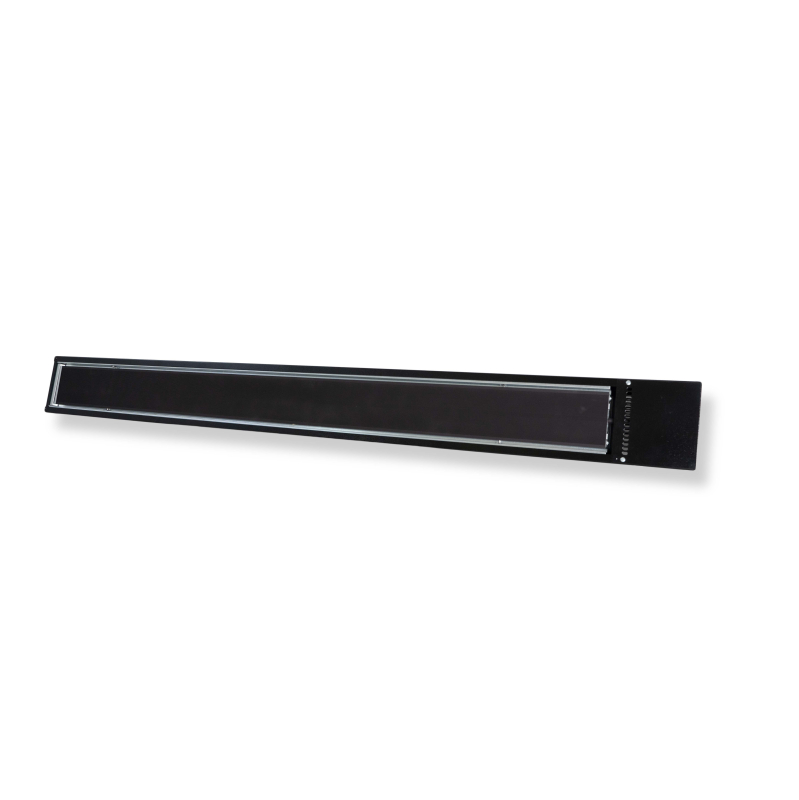

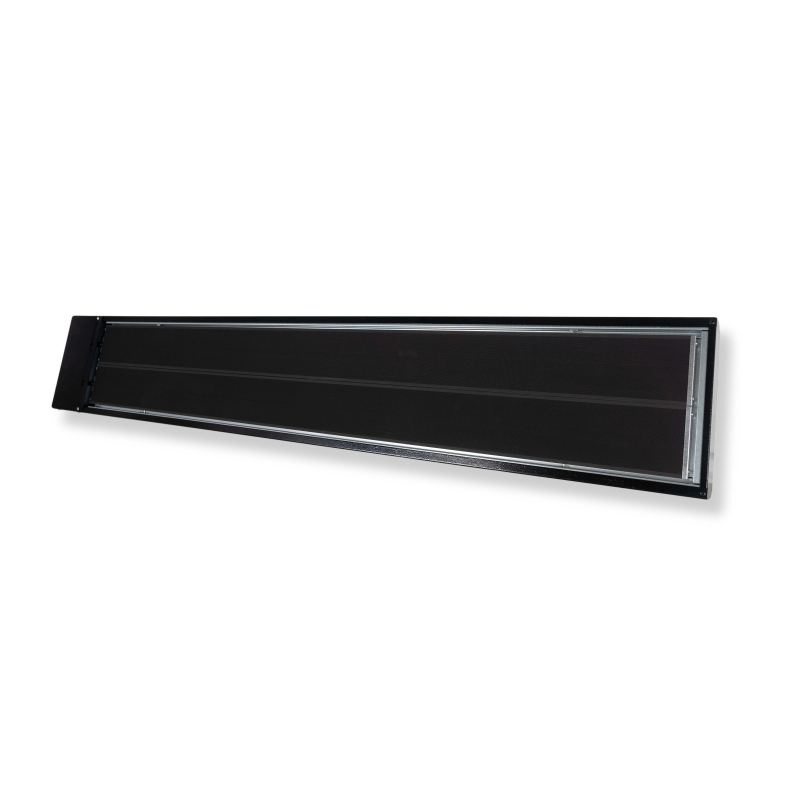

The Sunlife SUN F high-temperature IR panels are professional industrial panels designed for demanding environments and frequent use. With a stronger construction and the ability to reach higher temperatures, SUN F panels provide high responsiveness and efficiency, particularly in buildings with higher ceilings and larger volumes. These panels represent an energy-efficient alternative to traditional convection heating systems and warm air blower systems, as they reduce heat losses typically associated with high-ceilinged buildings. In addition to the standard black surface with a highly durable powder coating, anti-corrosive versions of the heating panels are also available. It is also possible to install adjustable brackets, allowing for wall mounting at an angle, as well as protective grilles for the heating surface.

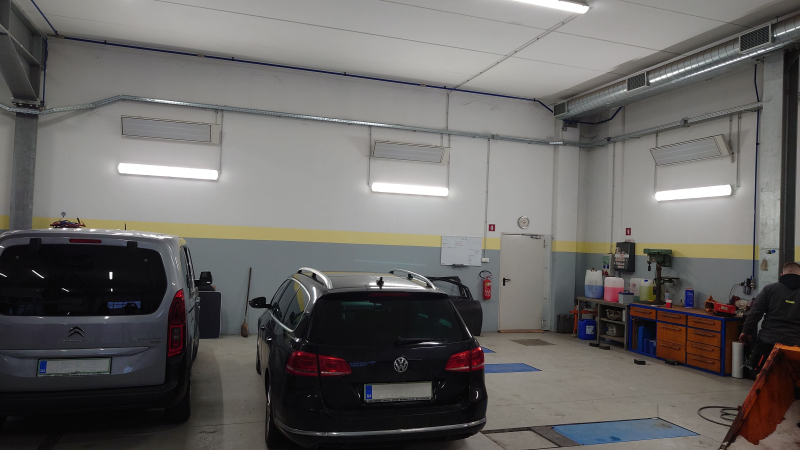

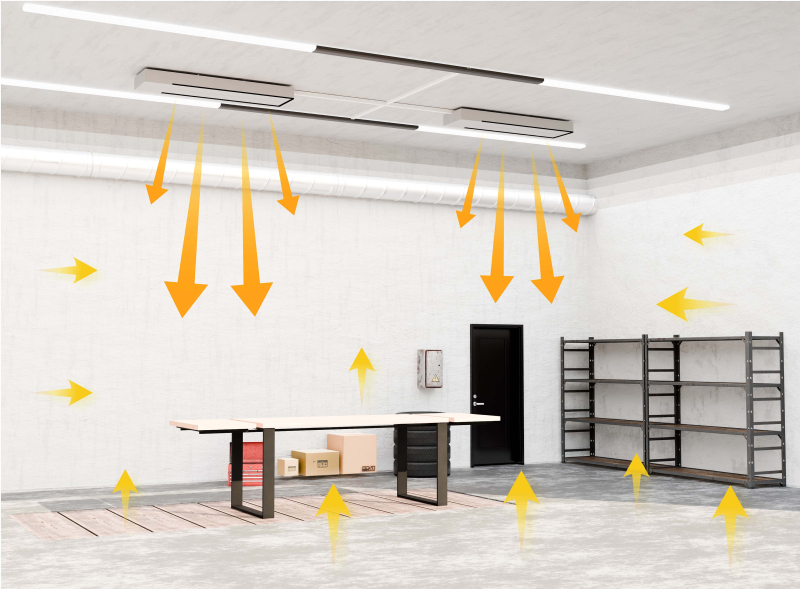

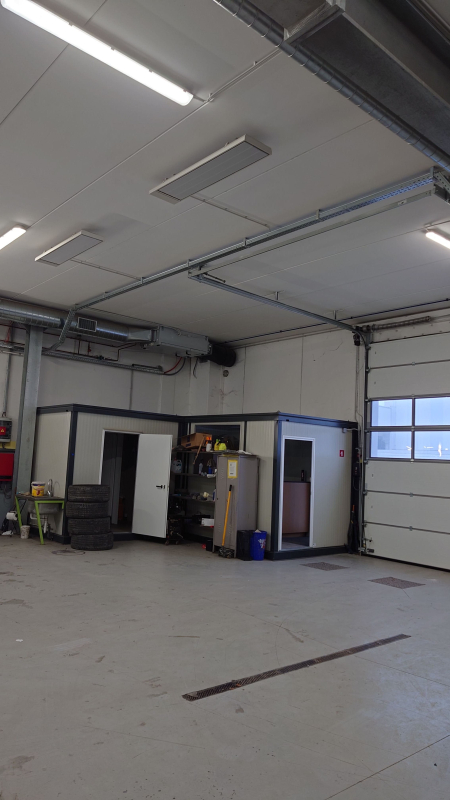

Sunlife SUN F panels are ideal for heating buildings with higher ceilings (from 3 to 10 meters) and larger volumes, such as industrial facilities, warehouses, workshops, halls, gymnasiums, and agricultural areas. They also allow for localized heating, meaning that heat can be directed to specific work areas or surfaces where it is needed, for localized heating of production spaces and heating to higher temperatures.

  • Robust Case: Made from durable steel sheet, with an option to choose the "anticor" model with triple anti-corrosion treatment, suitable for aggressive environments.

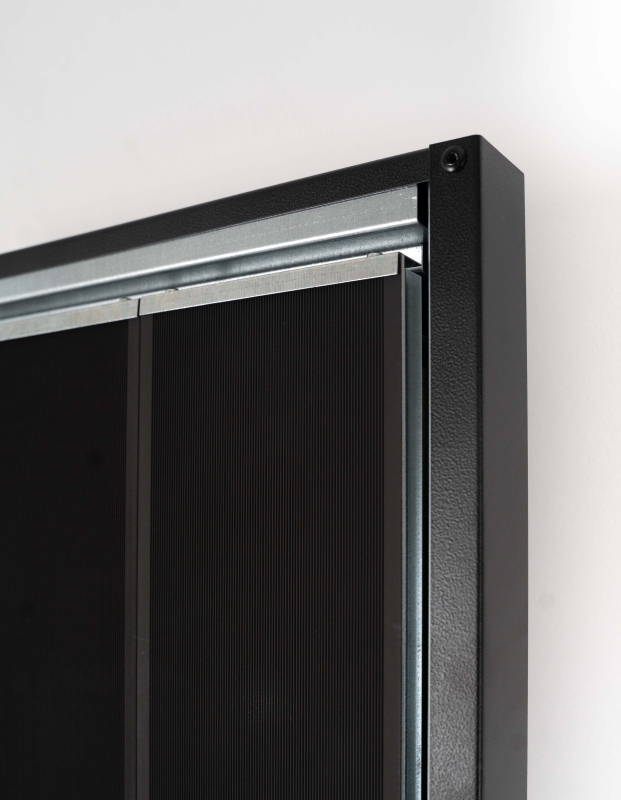

  • Innovative Heating Element: Aluminum heating fin with special silicate electrochemical treatment—so-called Silikiran galvanic treatment. This patented technology enables extremely high emissivity values comparable to those of a black body. Temperature resistance up to 500°C.

  • Efficient Insulation: High-quality, temperature-resistant insulation for lower temperatures on the rear side of the panel.

  • Power Variety: Available in single-, double-, and triple-fin versions, depending on the required power.

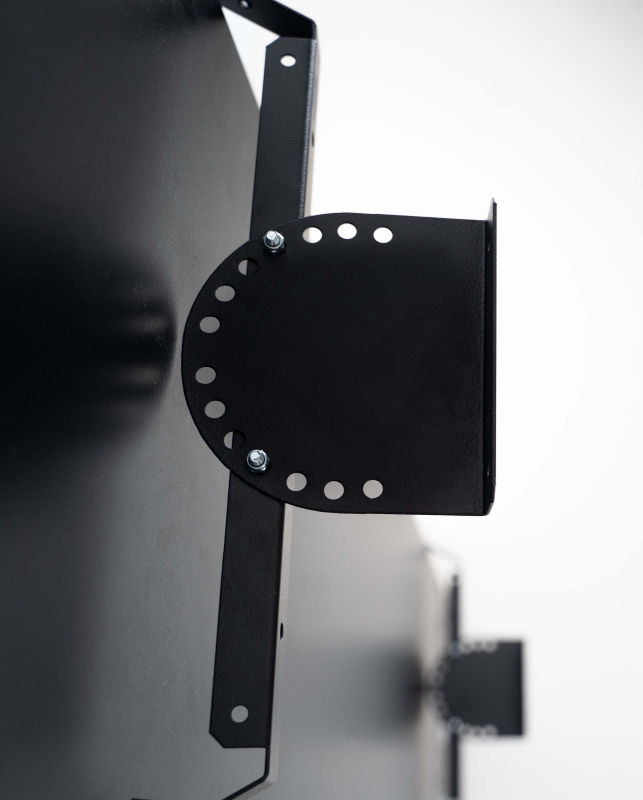

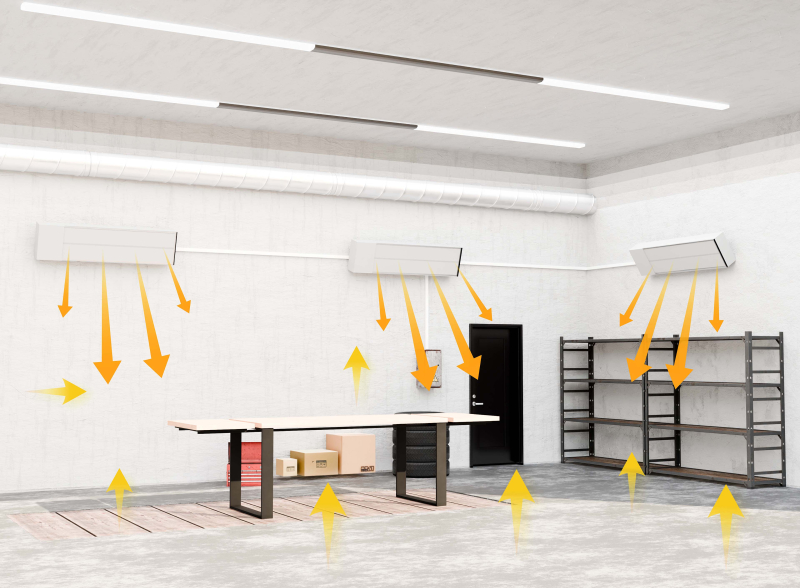

  • Additional Equipment: Option to install adjustable brackets for angled wall mounting, protective grilles for the heating surface, and a recessed frame for installation in plasterboard ceilings.


Sunlife SUN F high-temperature IR panels are thus tailored for demanding industrial environments, offering high efficiency and flexibility for various applications, from basic heating of buildings to specific localized heating.

Manufacturing: Produced in the EU
Origin and Raw Materials: EU
Color: Black
Case: Steel sheet
Heating Element: Aluminum heating fin with special silicate electrochemical treatment
Insulation: High-quality, temperature-resistant insulation
Protection: IP44

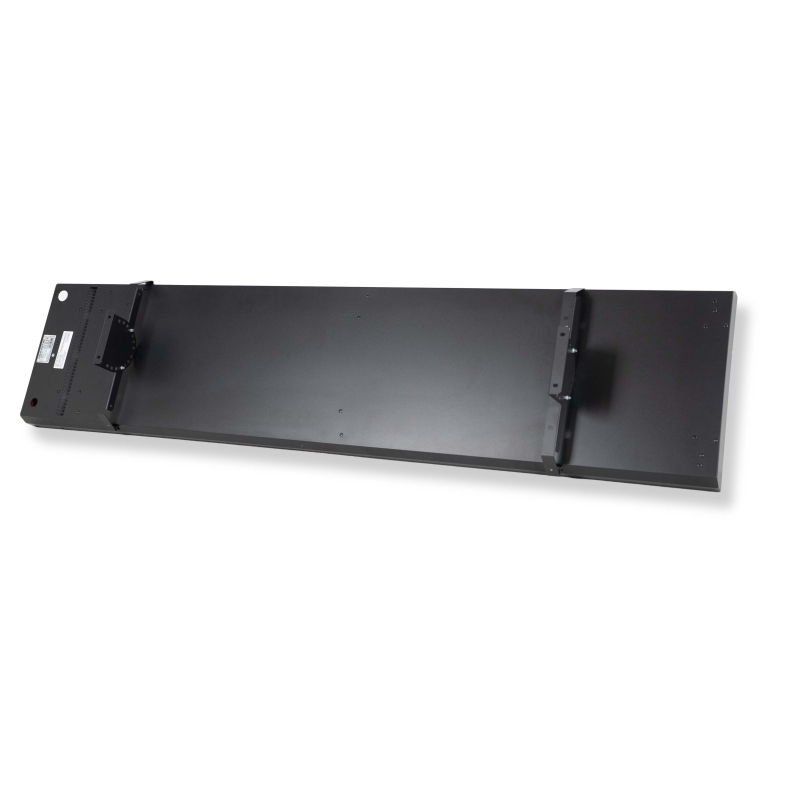

Panel Mounts: Adapted for easy wall or ceiling installation
Warranty: 5 years with an option to extend to 10 years



Power

item no.

1200 W

SF12

1800 W

SF18

2400 W

SF24

3000 W

SF30

3600 W

SF36
Voltage
230 V
230 V
230 V
230 V
230 V
Current
5,2 A
7,8 A
10,4 A
13 A
15,6 A
Length
1550 mm1550 mm
1550 mm
1550 mm
1550 mm
Width
150 mm
250 mm
250 mm
350 mm
350 mm
Thickness
60 mm
60 mm
60 mm
60 mm
60 mm
Weight
7,2 kg
11,6 kg
11,6 kg
16 kg
16 kg
Mounting location
ceiling/wall
ceiling/wall
ceiling/wall
ceiling/wall
ceiling/wall
IP protection
IP44
IP44
IP44
IP44
IP44
Warranty
5 years
5 years
5 years
5 years
5 years

More Information

Everything you need to know about heating with IR panels.

People are increasingly opting for IR heating for several reasons. High energy efficiency, which actually uses less energy to achieve the same room temperature as conventional heating systems, allows for quick and effective room heating. The simple installation of IR panels results in faster installation. The natural form of heat provided by the IR system positively affects comfort and well-being in the room. Lower initial investment compared to other central heating systems is attractive to many. Easy management and long-term durability of the system facilitate use and maintenance. Additionally, IR heating has a positive ecological aspect, as it does not produce harmful emissions and is environmentally friendly.

Ekosen experts perform precise energy calculations for your building and, based on this data, determine the optimal power of IR panels for each room. The energy consumption with the Ekosen IR heating system is very low in practice and can also be calculated. With correctly determined IR panel power, they will operate on average only up to about 3 hours per day in well and excellently insulated buildings and up to about 5 hours in less efficiently insulated buildings throughout the entire winter. Based on this data, you can easily calculate the approximate consumption of the system. For example, in a well-insulated residential house that, according to our calculations, requires a total power of 7 kW, the consumption calculation would be: 7 kW x 3 hours/day x 180 days = 3780 kWh. *The price per kilowatt-hour depends on the selected supplier, except in the case of an installed solar power plant, where heating costs can be free.

IR heating is known to be completely harmless and entirely natural, as it is present all around us. It is used in healthcare and has proven positive effects on health and well-being. Using the Ekosen IR heating system reduces the amount of dust and microorganisms in the air, as air circulation is lower compared to classic radiators and underfloor heating that use convection heating. This leads to a noticeable reduction in allergic reactions and respiratory problems, significantly improving overall well-being, especially for allergy sufferers and asthmatics. Additionally, the Ekosen IR heating system maintains optimal air humidity and prevents dry air. It also creates fewer conditions for mold formation, as it directly heats the walls, reducing the chances of condensation and mold occurrence.
